Description

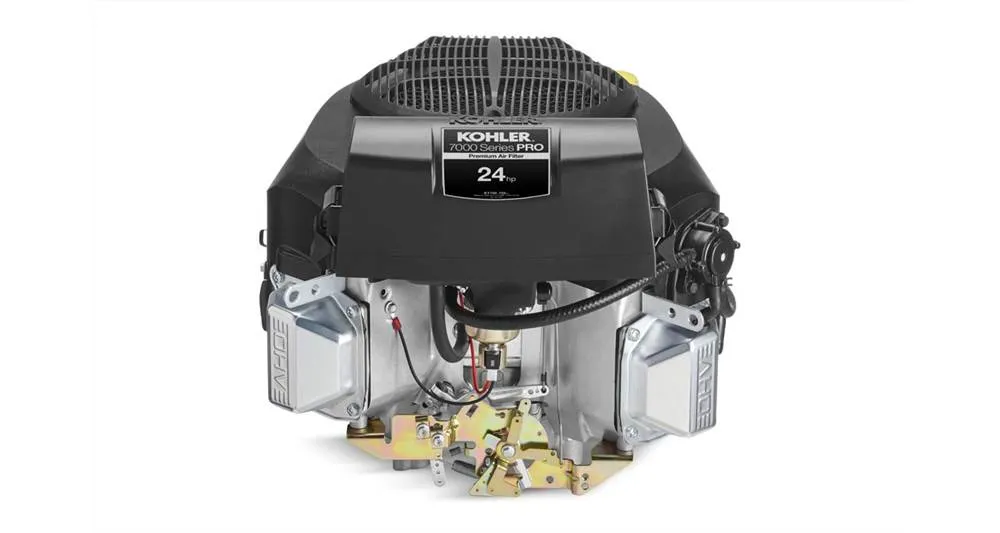

7000 SERIES KT735

Professional features and durablity in a consumer package. Based on the KOHLER Command PRO® commercial engine design, the air-cooled, V-time 7000 Series will run rings around your neighbors. It features a 3 year, unlimited hour, limited warranty.

Features

PRO Performance filtration package increases air, oil and fuel filter capacity for extra protection
Pressure lubrication extends engine life by keeping critical components well lubricated
Starts hot or cold, even at temperatures below freezing, with Smart-Choke™ technology
No need to choke the engine - starts at any throttle position
Cleaner cuts - Consistent-Cut™ technology maintains engine speed even in tough mowing conditions

Specifications

Engine type: Four-cycle, twin-cylinder, air-cooled, vertical shaft, gasoline, OHV, with cast iron liner.
HP: 24 HP (17.9 kW)
Displacement: 44.2 cu. in. (725 cc)
Bore: 3.3 in. (83 mm)
Stroke: 2.6 in. (67 mm)
Gross Torque: 40.5 ft. lb. (54.9 Nm)
Compression Ratio: 9.1:1
Dry Weight: 85 lb. (38.6 kg)
Oil Capacity: 2 US qt.(1.9 L)
Lubrication: Pressure lubrication w/full flow filter
Dimensions LxWxH: 18.6 x 17.5 x 13.9 in.
Backpressure Limit: 50
Certified Power: 22.2 HP (16.6 kW)
Certified RPM: 3600
Emissions Compliance: CARB Phase III; EPA Phase III; EU Stage V
Engine Type: Consumer

Equipment Types

Residential Riding Mower
Residential Zero Turn Mower

NOTES:

Length is front of air cleaner cover to back of blower housing. Width is side to side. Height is mounting surface to grass screen or air filter. Power (HP) and Torque (ft. lb.) specifications for Kohler general purpose engines are rated pursuant to Society of Automotive Engineers (SAE) J1940 based on gross output testing performed according to SAE J1995 without the air cleaner and muffler. Actual engine power and torque are lower and affected by accessories (air cleaner, exhaust, charging, cooling, fuel pump, etc.), application, engine speed, ambient operating conditions (temperature, humidity and altitude) and other factors. This J1940 / J1995 rating provides consistent measurement to customers who may want to control the intake and exhaust features of the engine. For more information, contact Kohler Co. Engine Engineering Department. Kohler Co. reserves the right to change product specifications, designs and standard equipment without notice and without incurring obligation. Backpressure Limit expressed in Inches of H20 @ 3600 RPM WOT J1995 power and torque certified by 3rd Party Witness
